The Actium motor family
Switched-reluctance drives from 15 to 175 kW peak. Every motor ships with its matched drive unit — CAN control standard, other control interfaces supported as needed. Zero rare earths, every one.

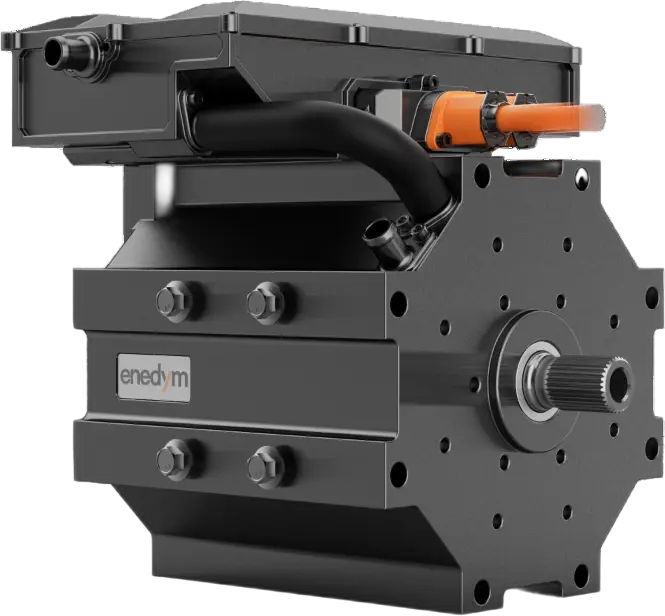

Actium 80V
The workhorse GSE drive — available as a 2-in-1 motor-inverter or separate units.
| Peak / continuous power | 30 / 20 kW |
| Max motor speed | 10,000 rpm |
| DC voltage range | 62–96 V |
| Rare-earth content | Zero |

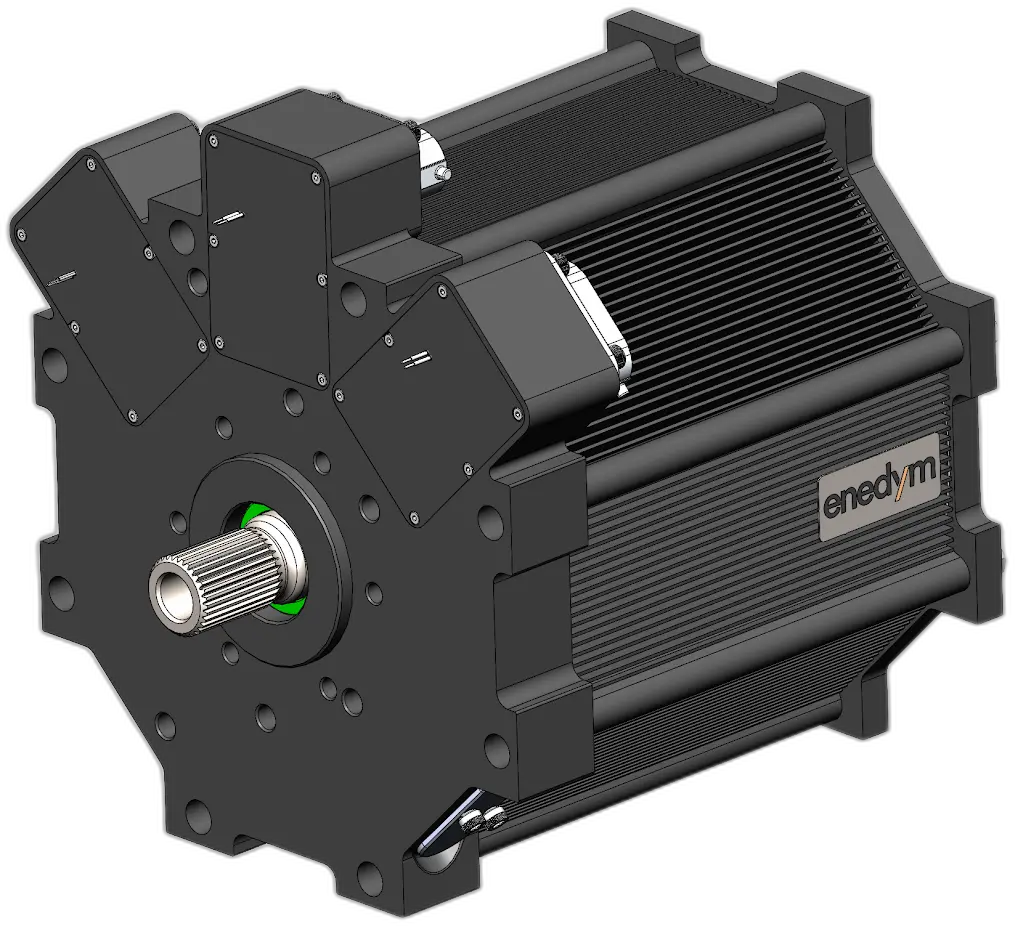

Actium 80V Air
Air-cooled 80V — no coolant loop to install. 2-in-1 or separate units; integrated 3:1 reduction gearbox available.
| Peak / continuous power | 25 / 15 kW |
| Max motor speed | 10,000 rpm |
| DC voltage range | 62–96 V |
| Rare-earth content | Zero |

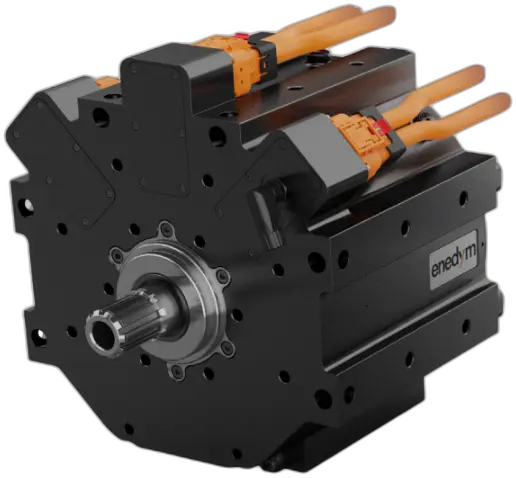

Actium 300
High-voltage single drive for heavier platforms and fast charging.
| Peak / continuous power | 60 / 20 kW |
| Max motor speed | 10,000 rpm |
| DC voltage range | 250–450 V |
| Rare-earth content | Zero |

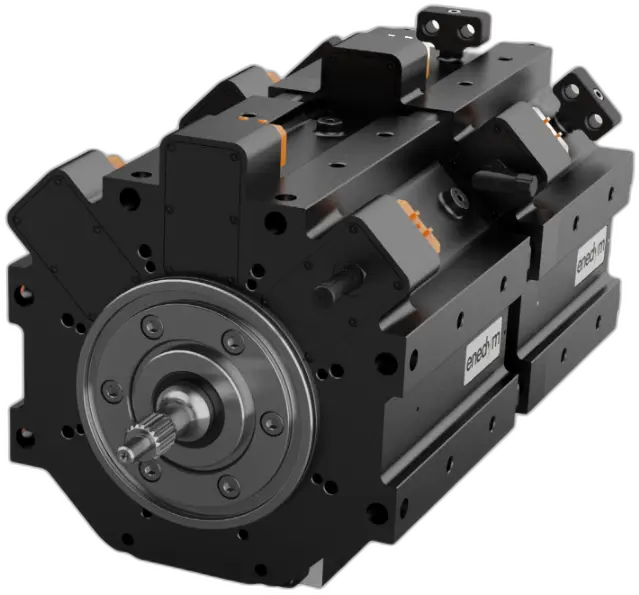

Actium Duo
Twin-stack power for the hardest pulls — one housing, double the output.
| Peak / continuous power | 120 / 40 kW |
| Max motor speed | 10,000 rpm |
| DC voltage range | 250–450 V |
| Rare-earth content | Zero |

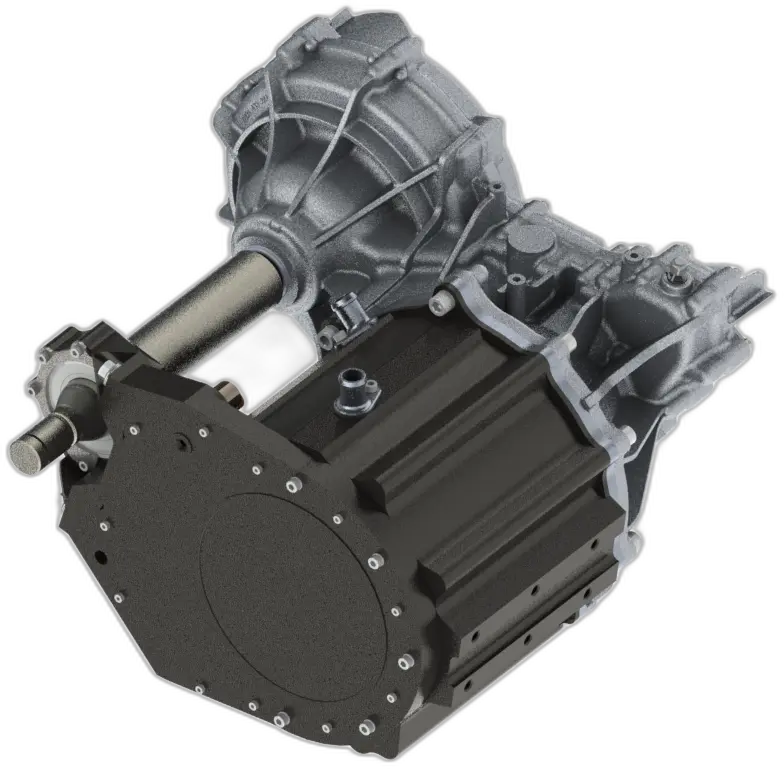

Actium XL
The top of the range — high-speed power dense drive, shown with integrated gearbox.
| Peak / continuous power | 175 / 100 kW |
| Max motor speed | 18,000 rpm |
| DC voltage range | 260–450 V |
| Rare-earth content | Zero |
Actium Pump
Half an Actium 80, purpose-built for hydraulic and auxiliary loads.
| Peak / continuous power | 15 / 10 kW |
| Max motor speed | 10,000 rpm |
| DC voltage range | 62–96 V |
| Rare-earth content | Zero |
Matched reduction gearboxes, designed around the same motor interface — so the drive arrives as one assembly rather than a sourcing exercise.

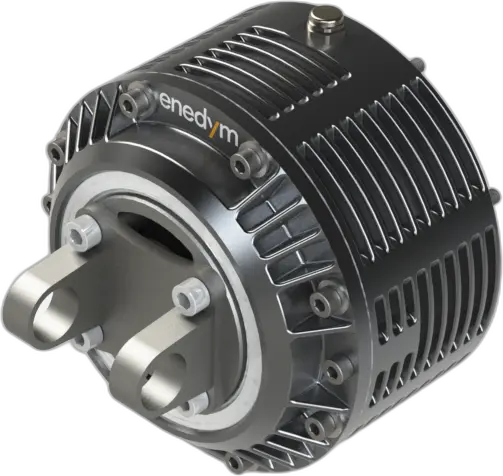

Planetary gearbox
Coaxial planetary reduction — input and output on the same axis, on the common Actium motor interface.
| Max torque | 450 Nm |
| Max speed | 9,000 rpm |
| Gear ratio | 3.09:1 |

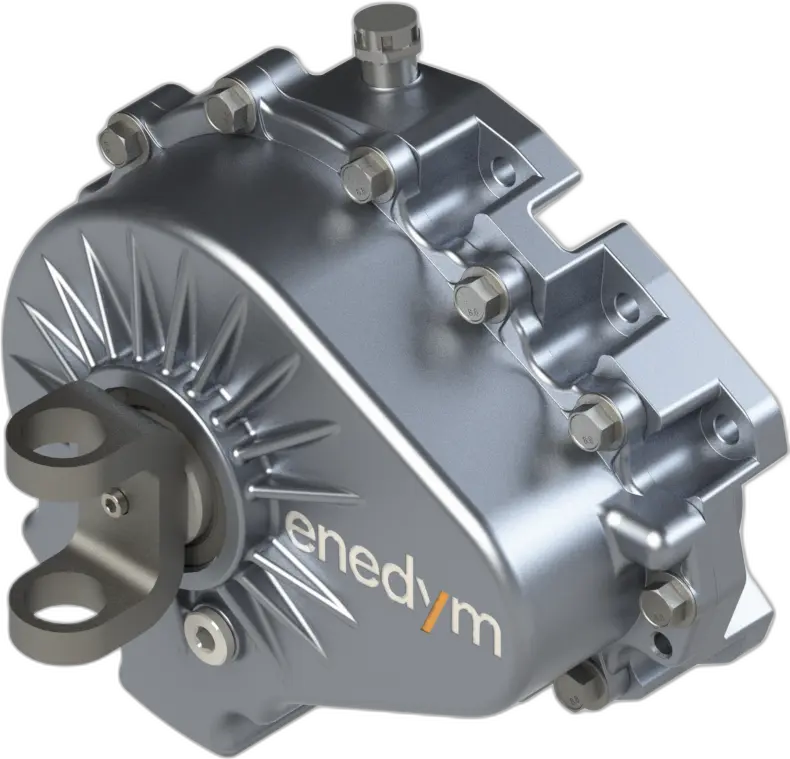

Offset gearbox
Parallel-shaft reduction with an offset output yoke, for driveline packaging where a coaxial unit will not fit.
| Max input torque | 300 Nm |
| Max input speed | 10,000 rpm |
| Gear ratio | 2.96:1 |
Looking for a custom spec?
Custom windings, envelopes and voltage classes come straight from our parent. Contact Enedym at [email protected], or see what a custom application program looks like.
